Model:Box-1400

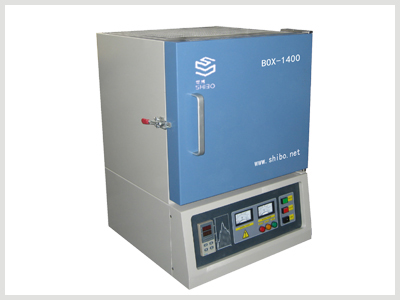

Box-1400 box muffle furnace is used SiC as heating element, rated working temperature is 1300℃, Max 1400℃. The temperature of furnace is controlled by high precision SCR digital controller and 50 segment programmable. Double layer structure with cooling fan. The furnaces are designed for accurate temperature control. And the chamber used imported alumina fiber, saving energy, small volume, rapid temperature-rising, uniform temperature field, good hot and cold resistance. It is an excellent product for university, science research institution,mining industry,etc for chemical analysis, physical testing, and metal,ceramic anneal and sintering.

Products character:

Chamber: high purity ceramic fiber, clean, light weight, good thermal insulation, faster heating, saving energy.

Temperature control: PID automatic control with 50 programmable segments for precise control

Heating rate:0-20℃/min(suggestion:≤10℃）

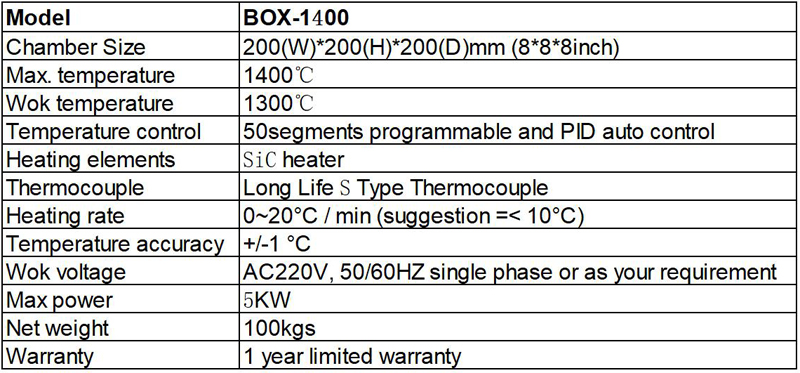

Specification:

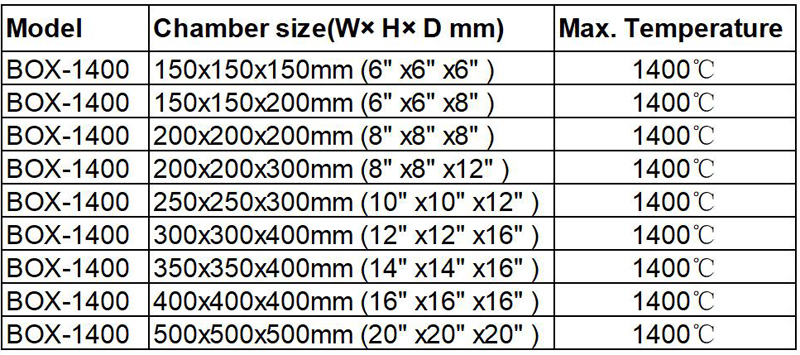

Standard Size:

Special size will produce as customer requirement
