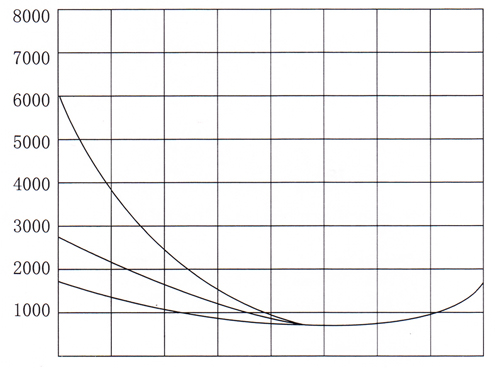

SiC heating elements has rather large specific resistance.When it is heated in air. The surface temperature of the hot zone reaches 1050 ℃. Its resistance rate is 600-1400℃/mm2.lts resistance value changes as the temperature rises. It shows a natrue curve : negative value from room-temperature to 800 ℃and positive value over 800℃ .

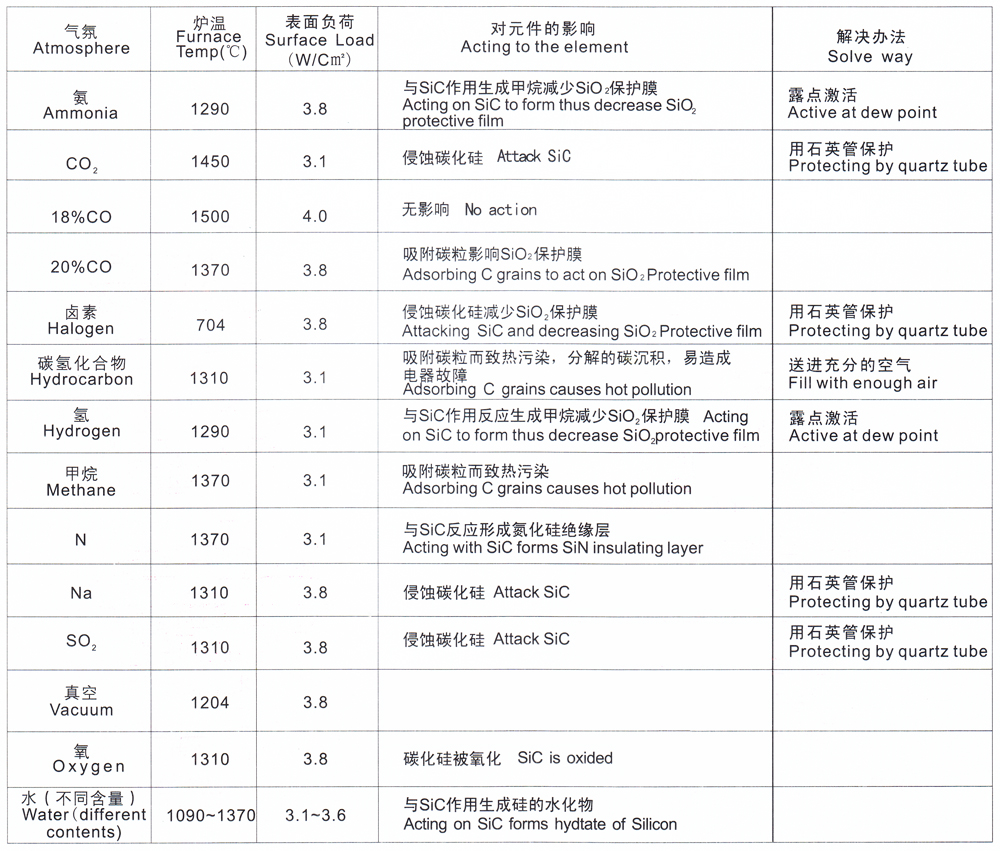

Control of applied temperature and surface load of SiC heating elements under different atmosphere:


Surface load of element:

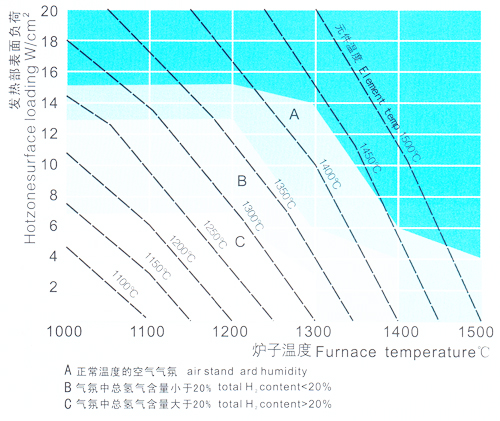

The key factor to the optimum service life ot the element is to select the surf ace load of the element correctly according to the furnace construction, atmosphere and temperature.Below figure shows the relation between furnace temperature,element temperature and element surface load under the condition that the element radiation isn't obstructed.

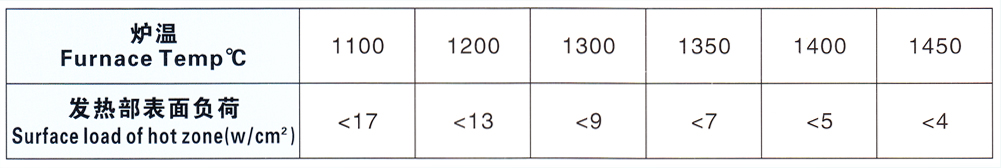

Recommend Surface load:
